YAMATO DENKI Rack PDU

Feature of YAMATO DENKI

Extensive Track Record in Japan's Data Centers

YAMATO DENKI's Rack PDU has been adopted by various major data centers in Japan, including those operated by telecommunications carriers, system integrators (SIs), independent entities, power companies, and financial institutions.
It is one of the top-level PDU manufacturers in Japan.

Short Lead Time and High Quality

With domestic production in Japan, we can offer a short lead time, shipping within three weeks after order placement (for orders of 50 units or less).
With a cumulative shipment record of 250,000 units, there have been zero major issues such as electrical accidents, smoke, or fires.

Trusted YAMATO DENKI Brand

・Safety designs cultivated over 77 years of operation.
・Utilizes a busbar structure that prevents connection failures.
・Domestic production in Japan ensures stable quality and supply capacity.
・All products are certified with the PSE mark.
・Operates three overseas production facilities (in China, Thailand, and Vietnam), allowing for consideration of global expansion.

Rated Voltage: 125V

Rated Voltage: 250V

Rated Current: 15A

Number of
Outlets: 6

Number of
Outlets: 9

Number of
Outlets: 12

Number of
Outlets: 18

Number of
Outlets: 24

Rated Current: 20A

Number of
Outlets: 6

Number of
Outlets: 9

Number of
Outlets: 12

Number of
Outlets: 18

Number of
Outlets: 24

Rated Current: 30A

Number of
Outlets: 12

Number of
Outlets: 18

Number of
Outlets: 24

Rated Current 20A

Number of
Outlets: 6

Number of
Outlets: 8

Number of
Outlets: 12

Number of
Outlets: 16

Number of
Outlets: 20

Number of
Outlets: 24

Number of
Outlets: 30

Rated Current 30A

Number of
Outlets: 8

Number of
Outlets: 10

Number of
Outlets: 12

Number of
Outlets: 16

Number of
Outlets: 20

Number of
Outlets: 24

Number of
Outlets: 28

Contact

If you have any inquiries regarding the purchase of Yamato Denki Co., Ltd. products, etc.,
please contact us by email. We will contact you as soon as we receive your inquiry.

CONTACT

Standard Specifications

Rated Voltage

125V , 250V

Rated Current

125V：15A , 20A , 30A
250V：20A , 30A

Input Plug Type

125V 15A：	NEMA 5-15P equivalent(JIS C 8303)
20A：	NEMA L5-20P
30A：	NEMA L5-30P
250V 20A：	NEMA L6-20P
30A：	NEMA L6-30P

Output Type

125V：	NEMA 5-15R equivalent(JIS C 8303)(Lock type)
250V：	IEC C13(Lock type) IEC C19

Input Cable

Soft VCT Cable - Standard Length: 3m
15A：VCT2.0㎟(3-core)
20A：VCT3.5㎟(3-core)
30A：VCT5.5㎟(3-core)

Color

Standard Color: Black (Red and Blue Available)

Length

403mm～1753mm　※Subject to Specifications

Width

44mm～55.4mm　※Subject to Specifications

Thickness

28.5mm～37mm　※Subject to Specifications

Mounting Method

0U/1U

Regulations

PSE

Related Standards

JIS C8303 , C8306

Operating Environment Conditions

Ambient Temperature：-5°C to 40°C
Ambient Humidity： 85% or less (no freezing or condensation)
Altitude： 2,000 meters or below
Environment： Must be free from excessive steam, oil vapor, smoke, dust, and corrosive gases. Also, must not be subject to abnormal vibration or shock.

Introduction of Rack PDU

Industry's Thinnest and Lightest Body

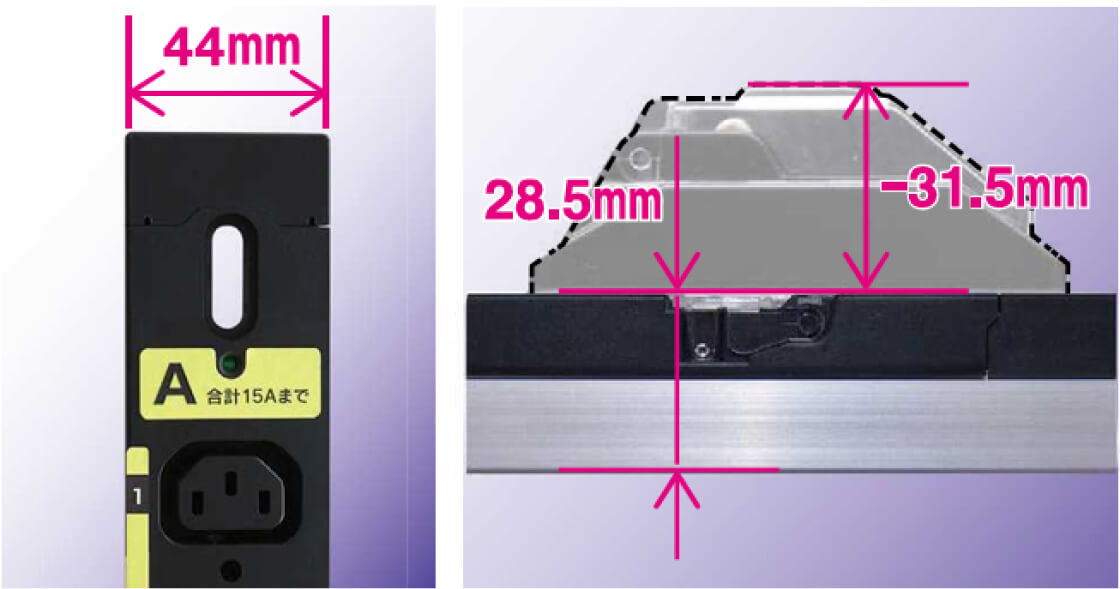

Achieved an industry-leading thin body of 28.5mm(*) through our unique design! The circuit protector used in the breaker section also achieves the same thinness.
The front side is made of resin, while the back side is made of aluminum, balancing lightness with robustness.
The product's thinness helps reduce interference with equipment and improves heat dissipation issues.

(*) Thickness and width may vary depending on product specifications.

200V C13 Outlets with Standard Locking Function

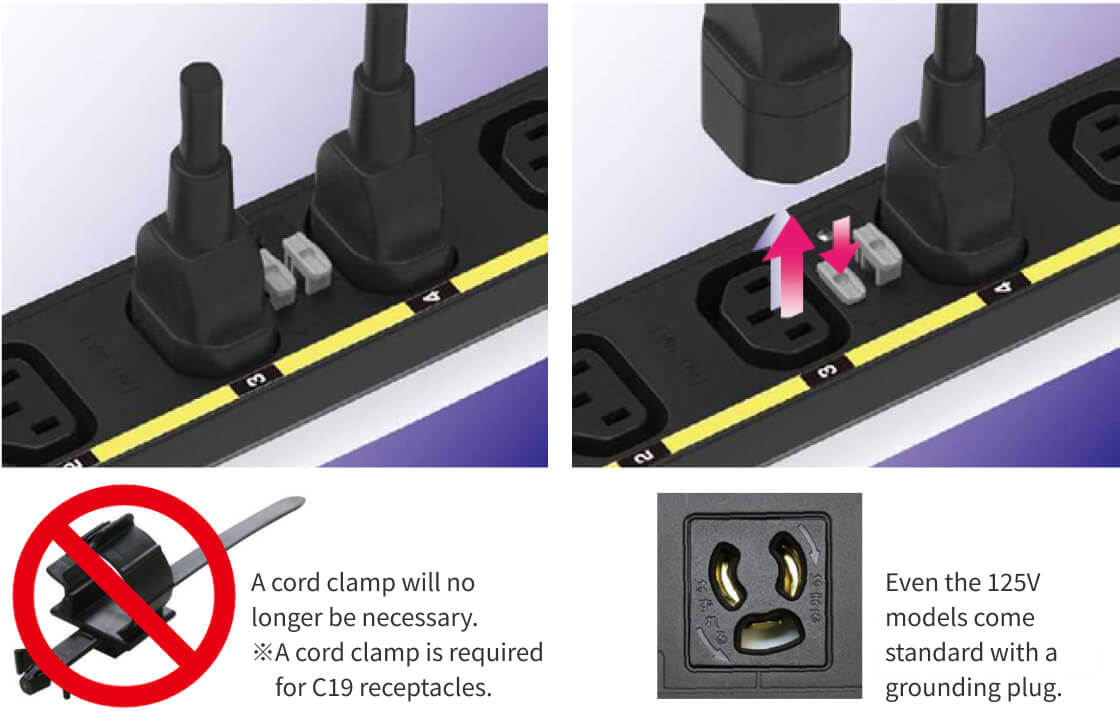

Simply insert a standard C14 plug to engage the lock, preventing accidental disconnection.
Eliminates the need to attach or remove traditional cord clamps, improving work efficiency.
Standard feature across the entire 200V product lineup.

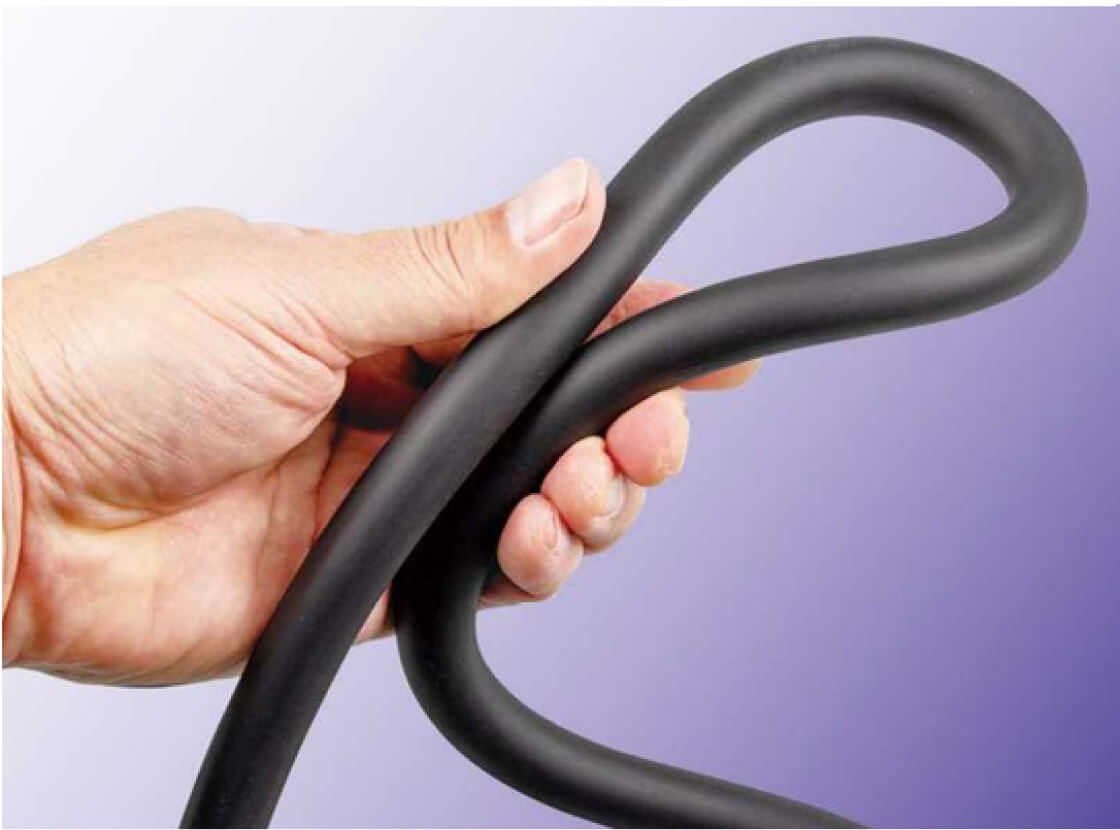

High-Flexibility Soft VCT Cable Adoption

Standard adoption of soft VCT cable, which offers greater flexibility than general VCT cables.
Improved cable maneuverability enhances work efficiency during installation.
Helps avoid interference with equipment inside the rack.

※When requesting a 3m cord, please order using a part number that ends with "-3M."

High-Flexibility Soft VCT Cable Adoption

Realizing Customer Needs with Comprehensive Additional Features

We have brought to life various requests from our customers.

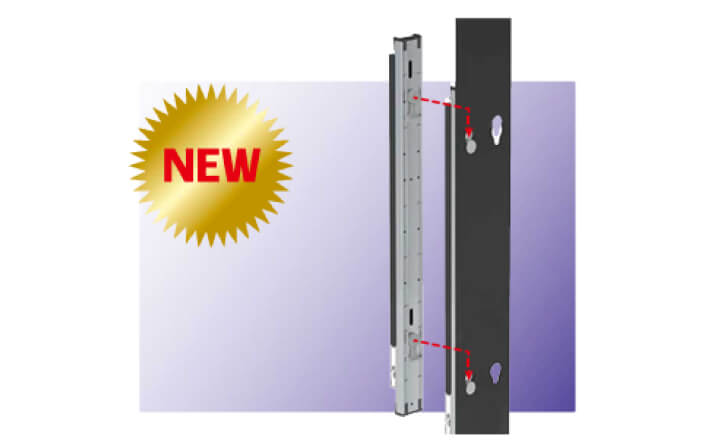

Peg fixing

The mounting pitch is the same as that of foreign-made PDUs, at 311mm. No tools are required for installation.

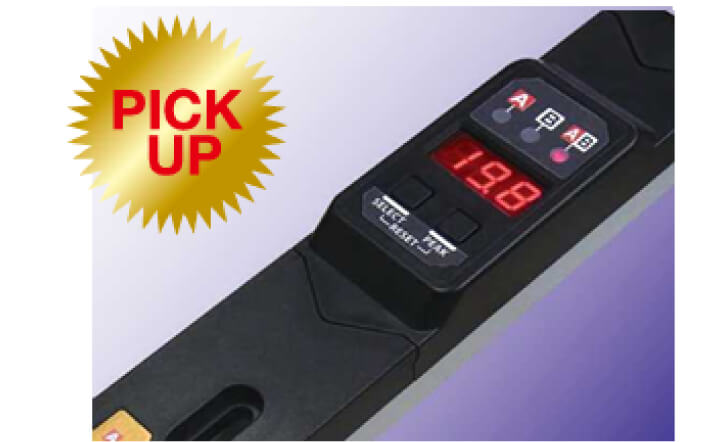

Current Display Type

Displays the current value for each system.

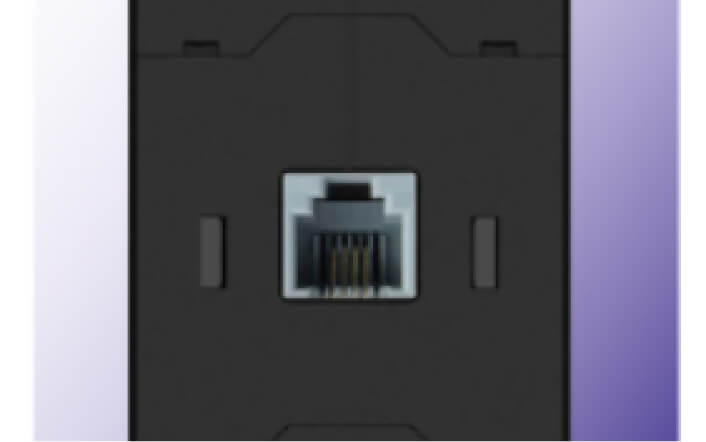

Type with Alarm Contact

Capable of detecting circuit protector trips.

1U Type

Can be mounted in a 1U size of a 19-inch rack.

Redundant Power Identification Type

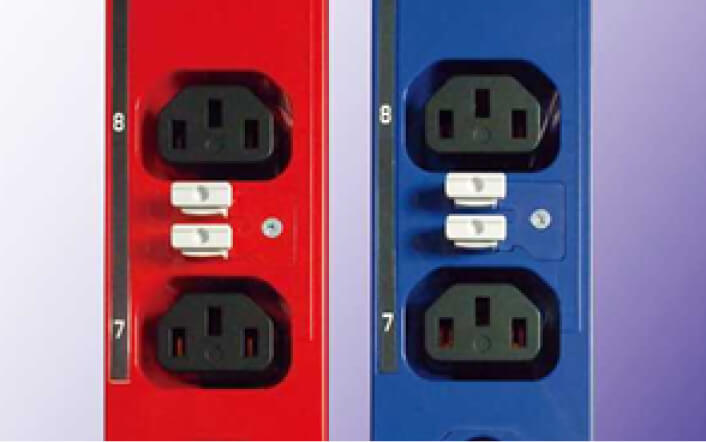

The body and plug are color-coded to clearly identify the power system.

Ceiling Wiring Compatible (Reverse Display)

Supports reverse display for ceiling wiring configurations. ※The standard product display assumes underfloor wiring.

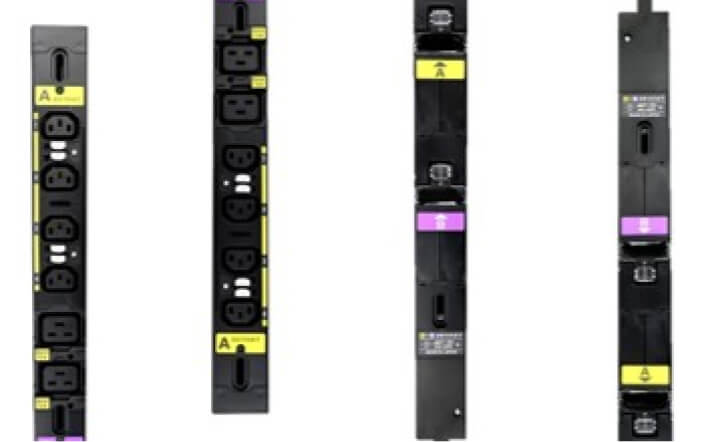

Product lineup

200V・100V Peg Fixing Type

A first in Japan! No tools required for installation. Easy-to-install peg fixing design.

200V System-Specific Current Display Switching (C13) Lock Type

A much-anticipated 200V model for the data center industry is now available!

200V・100V 1U Type

An outlet bar that can be mounted in a 1U size.

200V C13 Lock Type + C19

A lock type that retains its slim body while preventing disconnection simply by plugging in.

200V 30A Flat Type with Alarm Contacts

An outlet bar that achieves less than 50% of the thickness compared to our previous models, capable of detecting circuit protector trips.

200V C13 Lock Type

A lock type that retains its slim body while preventing disconnection simply by plugging in.

100V Slim Type

Slim, lightweight, and durable body that can be installed anywhere.

100V Slide Rail Type

Features a robust aluminum chassis for superior durability, with slide rails designed for easy installation in racks from various manufacturers.

100V System-Specific Current Display Switching Type

Measures the current of devices connected to the outlets in each system and displays the total value for each system as well as the combined total for two systems.

100V System-Specific Current Measurement Type

Equipped with an arch for current measurement, allowing the use of clamp-type current sensors or clamp meters to measure the current used.

100V Compact Type

A compact design focused on installation in minimal space.

200V・100V Color Type

A first in the industry! A domestically produced basic outlet bar with both the body and plug color-coded.
